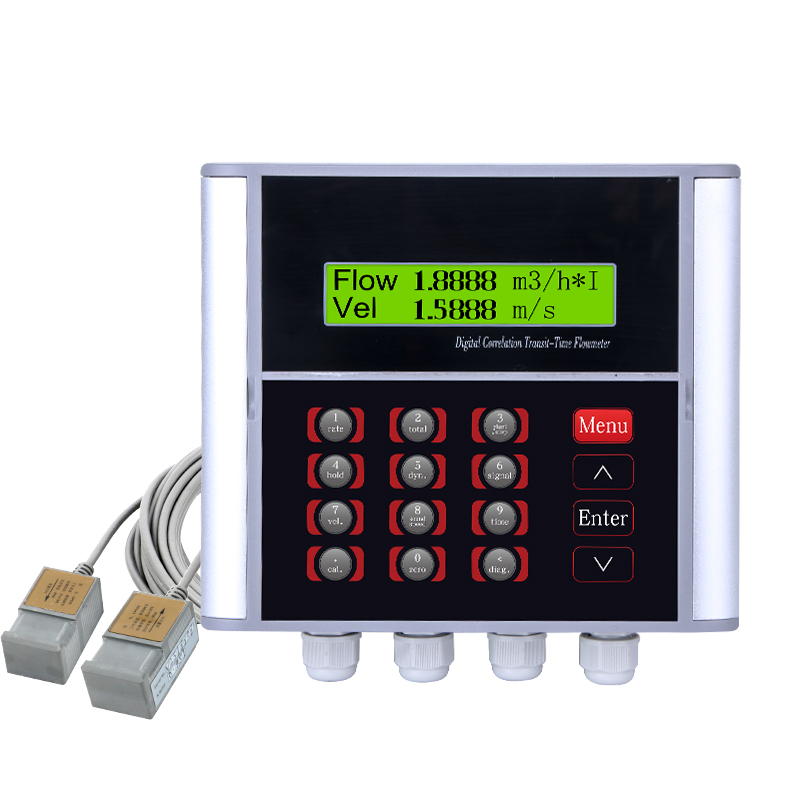

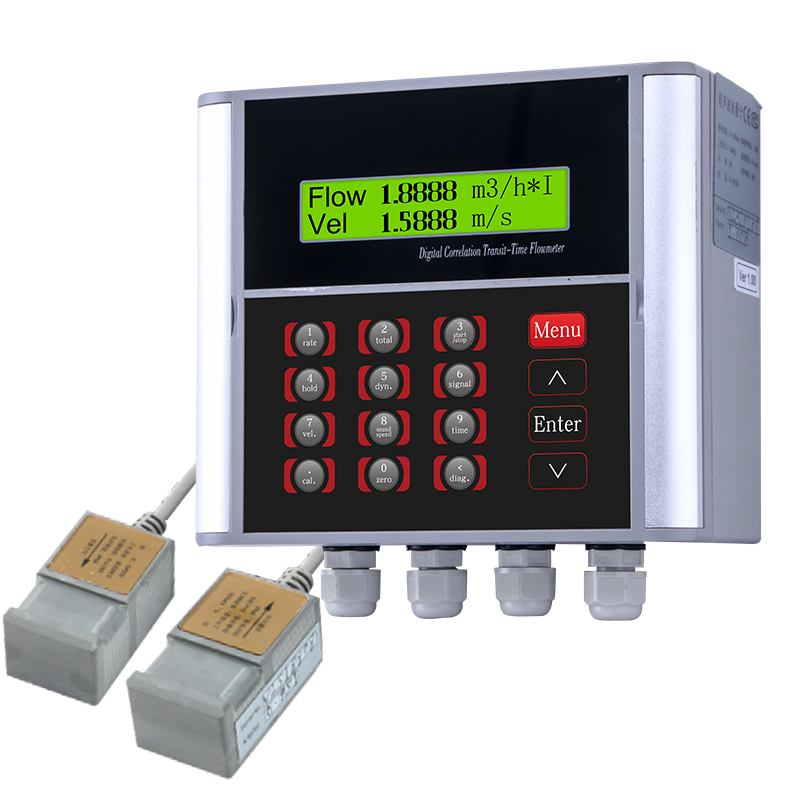

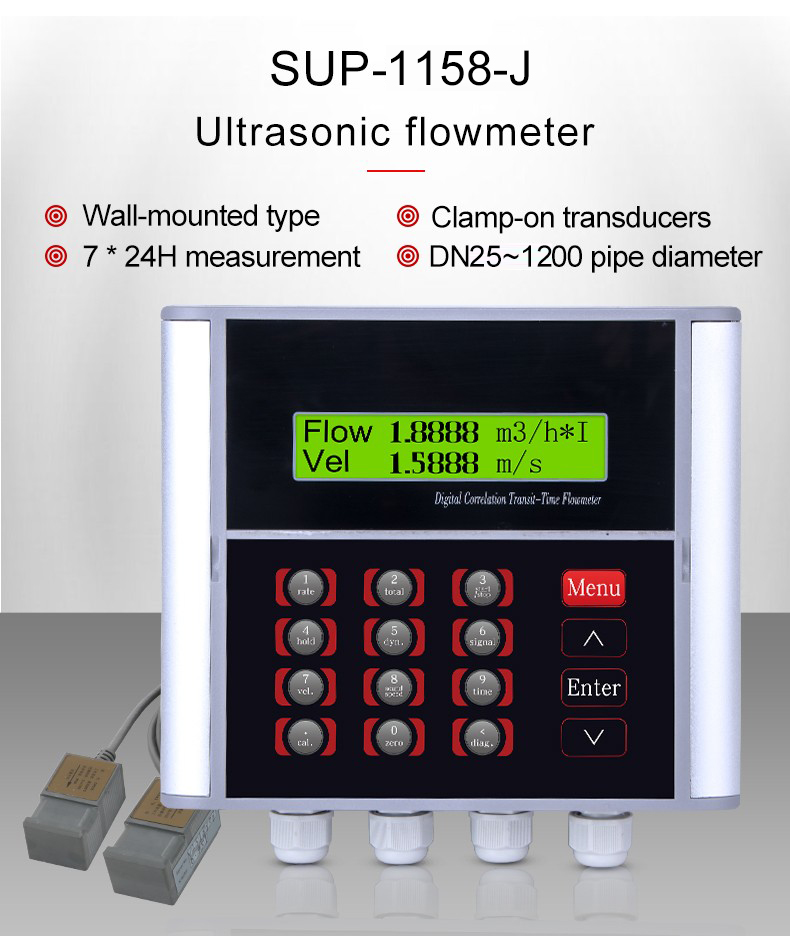

SUP-1158-J ultrasonic flow meter uses advance circuit design,coupled with excellent hardware designed in English and can be switched surfaces.It is easy to operate and with stable performance.

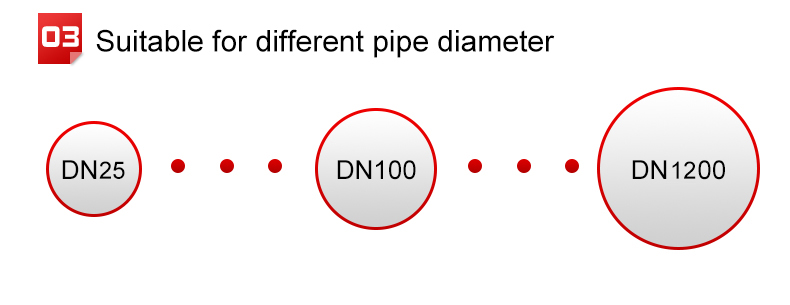

Pipe diameter: DN25-DN1200
Accuracy: ±1%
Power supply: 10～36VDC/1A
Output: 4～20mA, RS485
Specification
| Product | Ultrasonic flowmeter |
| Model | SUP-1158-J |
| Pipe size | DN25-DN1200 |
| Accuracy | ±1% |
| Output | 4～20mA, 750Ω |
| Communication | RS485, MODBUS |
| Flow rate | 0.01~5.0 m/s |
| Working temperature | Convertor: -10℃～50℃； Flow Transducer: 0℃～80℃ |
| Working humidity | Convertor:99%RH； |
| Display | 20×2 LCD English letters |
| Power supply | 10～36VDC/1A |
| Case material | PC/ABS |
| Line | 9m（30ft） |
| Handset weight | Transmitter: 0.7Kg; Sensor: 0.4Kg |
Introduction
SUP-1158-J ultrasonic flowmeter uses advanced circuit design coupled with excellent hardware designed in English for liquid flow detection and comparison testing in pipes. It has the characteristics of simple operation, convenient installation, stable performance and long lasting life.

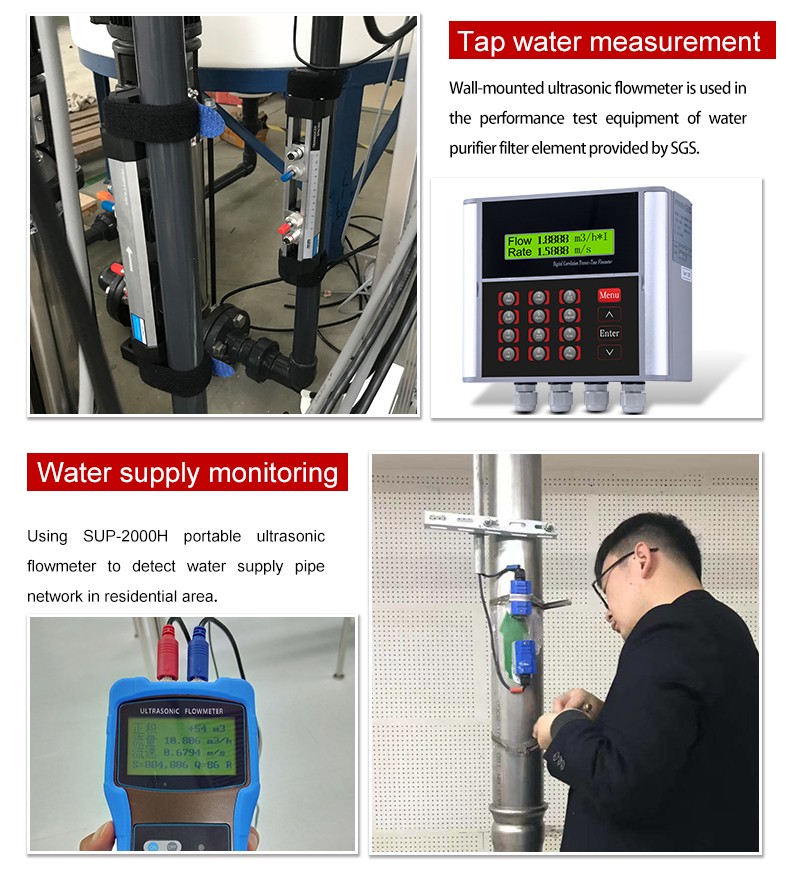

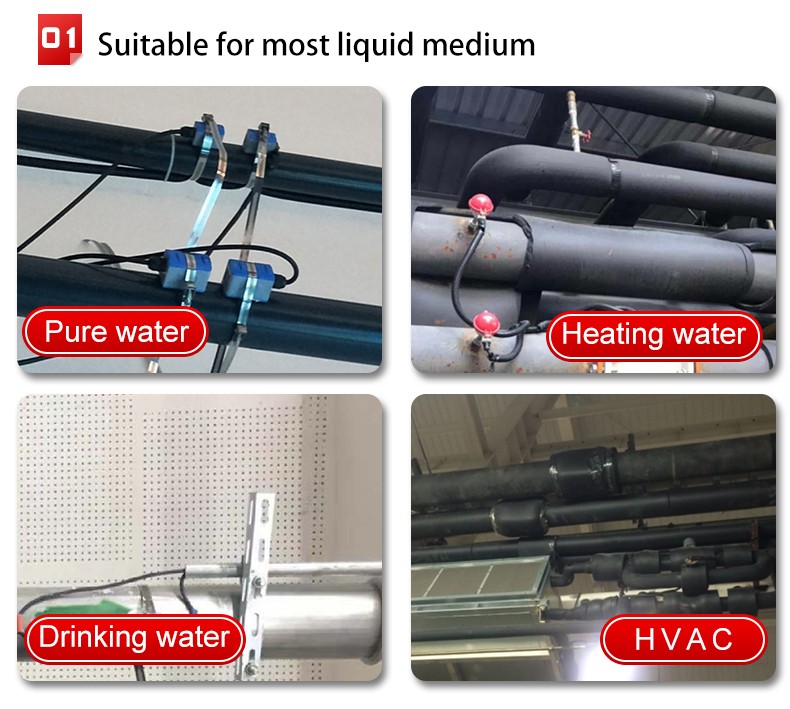

Application
Description

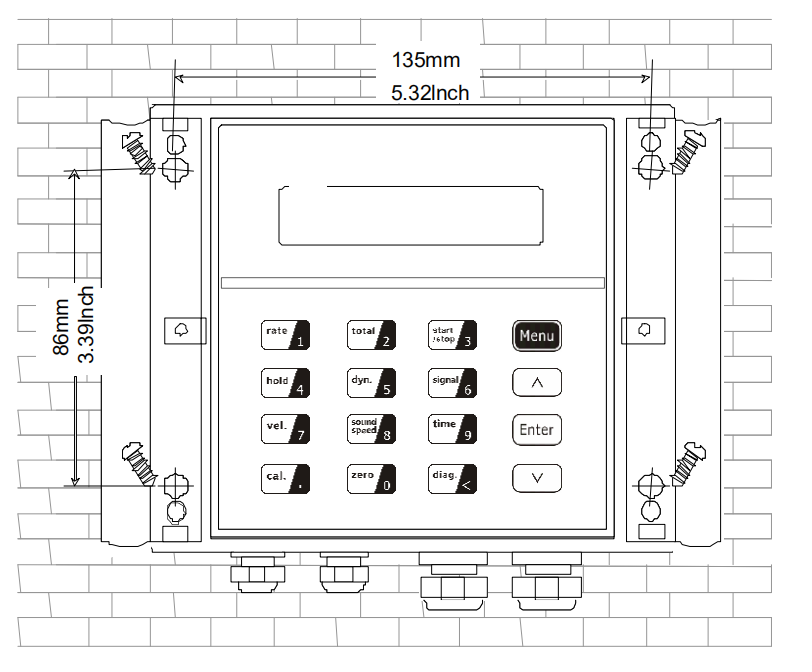

Installation method
