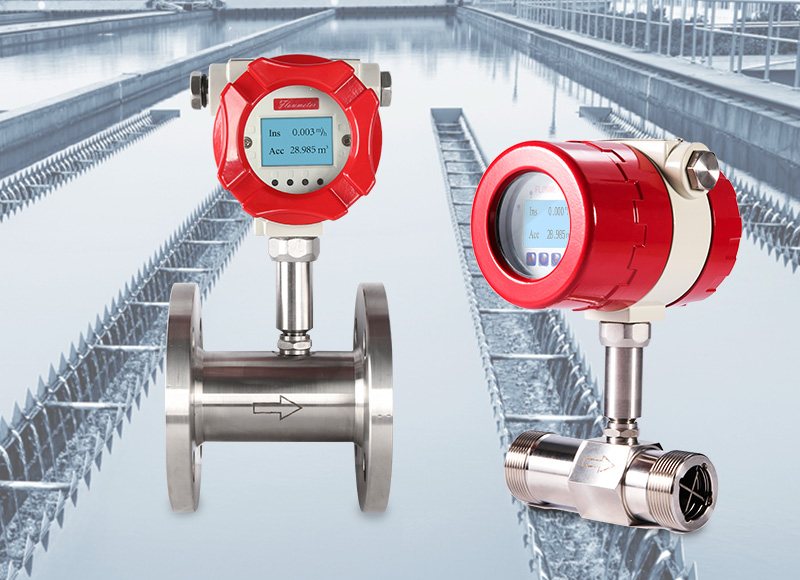

SUP-LWGY Turbine flowmeter flange connection
liquid turbine flowmeter water turbine flowmeter turbine flowmeter flange connection turbine flow meter pulse output turbine flow meter RS485 4-20mA output

SUP-LWGY Turbine flowmeter flange connection

SUP-LWGY series liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe. In the petroleum, chemical, metallurgy, water supply, paper and other industries with a wide range of applications.

Features

  • Pipe diameter: DN4~DN200
  • Accuracy: 0.5%R, 1.0%R
  • Power supply:  3.6V lithium battery; 12VDC; 24VDC
  • Ingress protection: IP65

Specification

 Product  Turbine flowmeter
 Model  SUP-LWGY
 Diameter Nominal  DN4~DN200
 Nominal Pressure  1.0MPa~6.3MPa
 Accuracy  0.5%R, 1.0%R
 Medium viscosity  Less than 5×10-6m2/s
 (for the liquid with >5×10-6m2/s,
 the flowermeter needs to be calibrated before using)
 Medium Temperature  -20℃~+120℃
 Power Supply  3.6V lithium battery; 12VDC; 24VDC

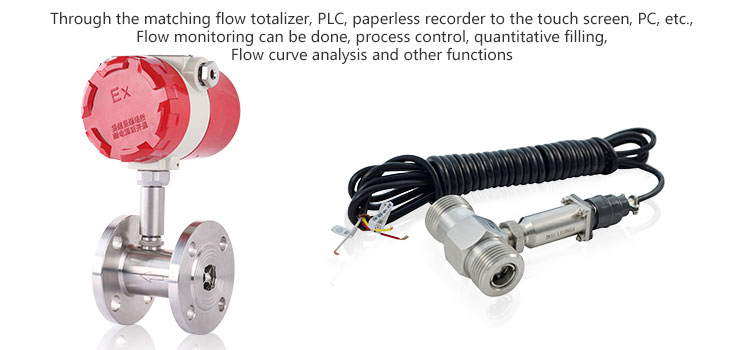

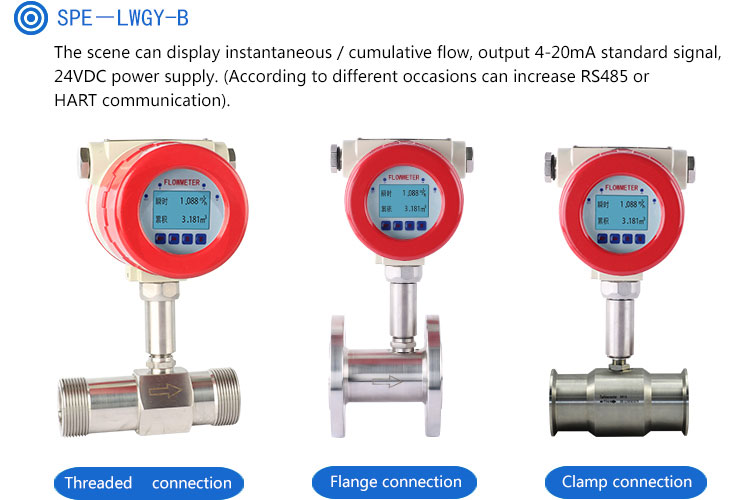

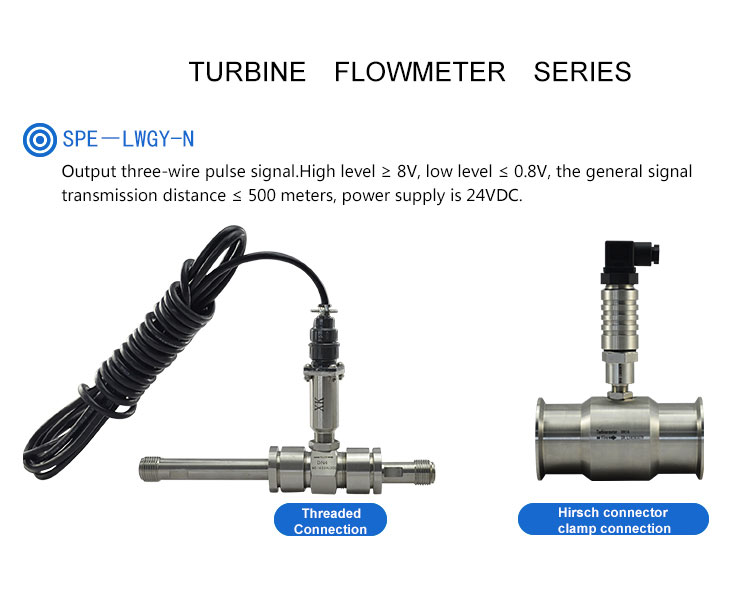

 Output Signal  Three-wire pulse output, two-wire 4-20mA output
 Ingress protection  IP65

Introduction

SUP-LWGY series liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe.

turbine flowmeter



Description

turbine flowmeter

turbine flowmeter.jpg

turbine flowmeter.jpg

turbine flowmeter.jpg

turbine flowmeter.jpg

turbine flowmeter.jpg

turbine flowmeter.jpg

turbine flowmeter.jpg

turbine flowmeter.jpg
