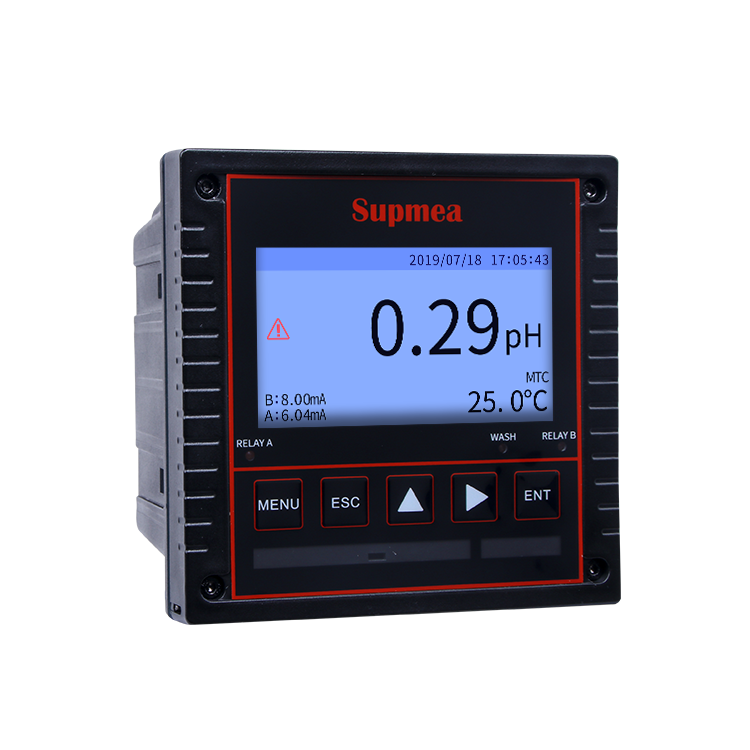

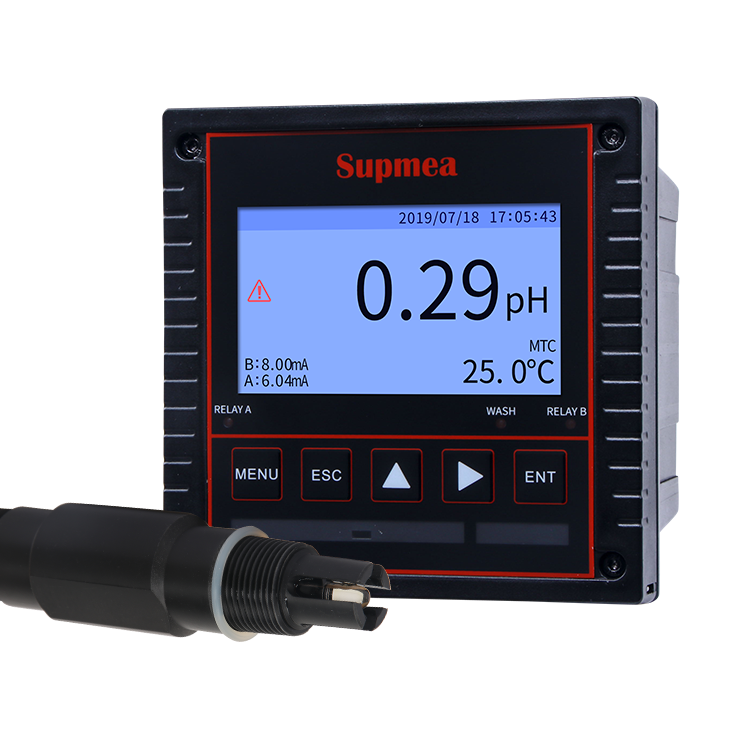

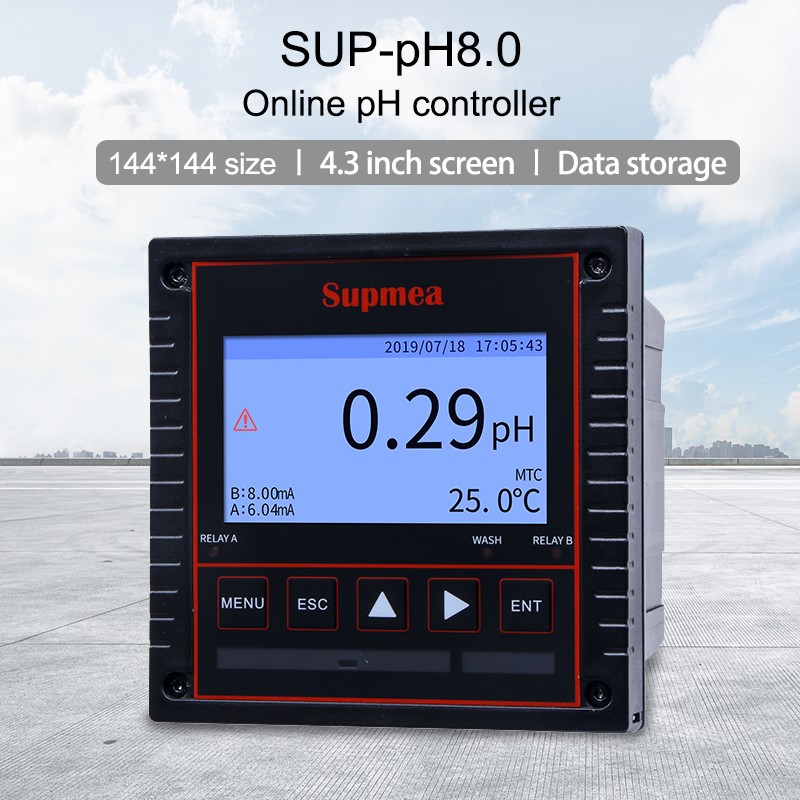

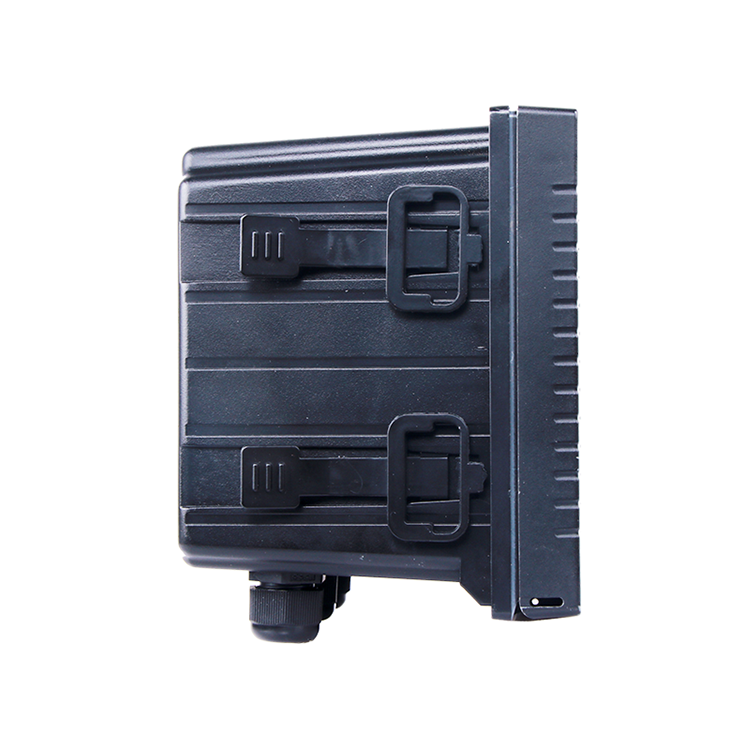

MIK-PH8.0 pH ORP meter

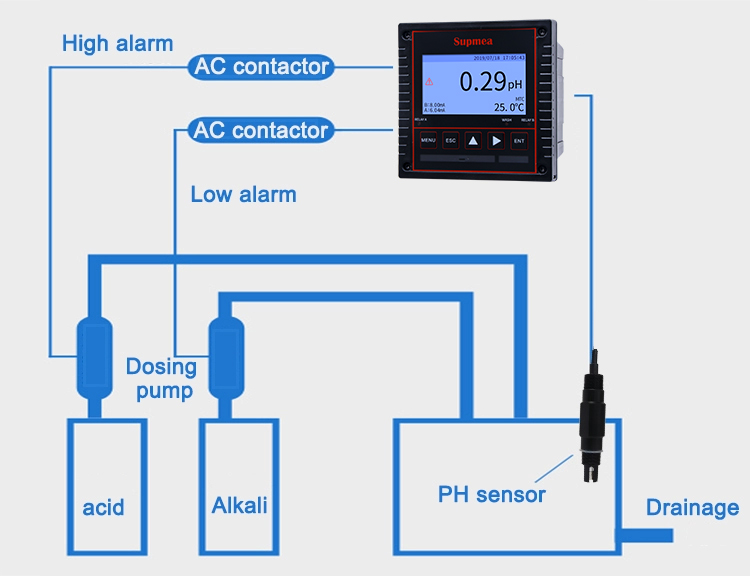

MIK-PH8.0 industrial pH meter is an online pH analyzer which applied in chemical industry metallurgy, environment protection, food, agriculture and so on. With 4-20mA analog signal, RS-485 digital signal and relay output. Can be used for industrial processes and water treatment processes pH control, and support remote data transmission, etc.

Characteristics

Measure range: pH: -2-16 pH, ±0.02pH; ORP: -1999 ~1999mV, ±0.1%FS

Input Resistance: ≥10~12Ω

Power supply: 220V±10%，50Hz/60Hz

Output: 4-20mA, RS485, Modbus-RTU, Relay

Specification

Product	pH meter, pH controller
Model	MIK-PH8.0
Measure range	pH: -2-16 pH, ±0.02 pH
	ORP: -1999 ~1999mV, ±0.1%FS
Measuring medium	Liquid
Input Resistance	≥10¹²Ω
Temp compensation	NTC 10K:-10~60℃ accuracy:±0.3℃ 60~130℃ accuracy:±2℃ PT1000/PT100:±0.3℃ Manual/ Auto temperature compensation
Temperature Range	0~60℃, NTC10K or PT1000
Communication	RS485, Modbus-RTU
Signal output	4-20mA, maximum loop 750Ω, 0.2%FS
Power supply	100- 240VAC，50Hz/60Hz,5W Max
Relay output	250V, 3A
Dimension	Dimension: 144mm144mm115mm Hole Size: 138mm*138mm
Weight	0.68kg
Ingress protection	IP65
