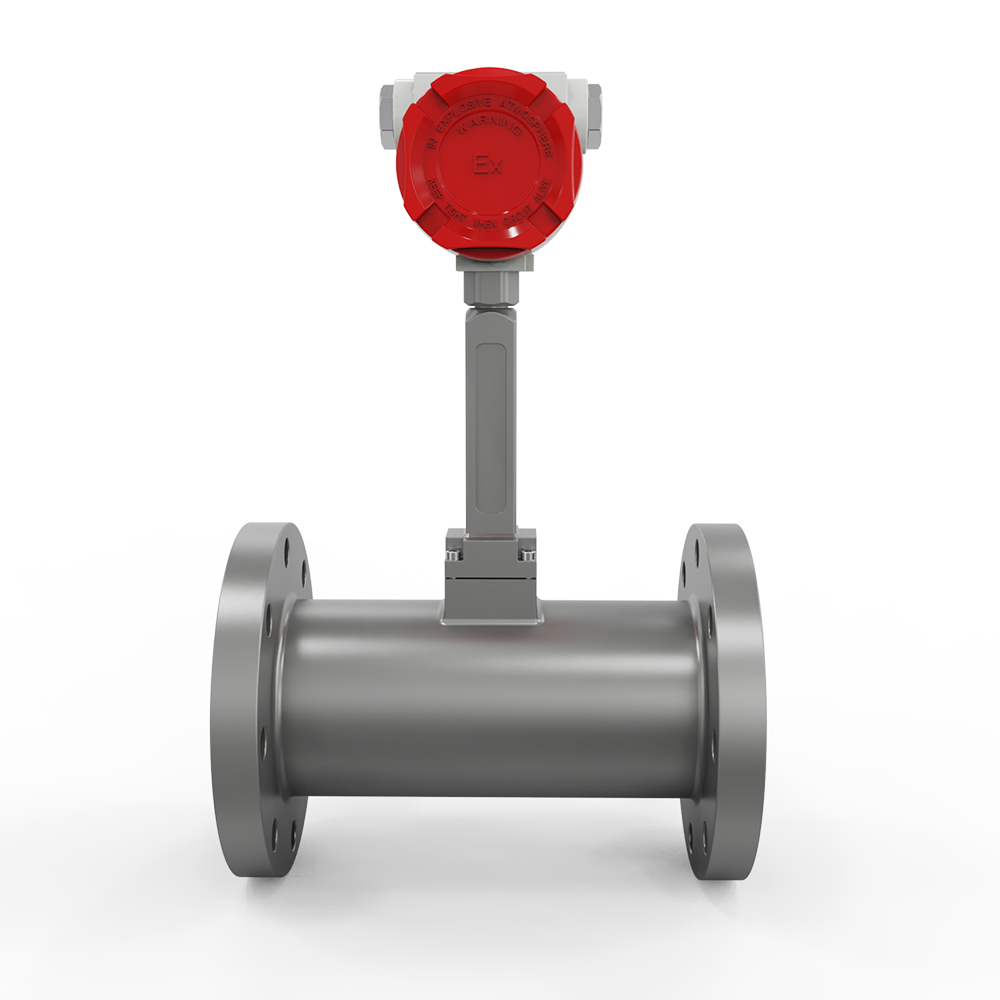

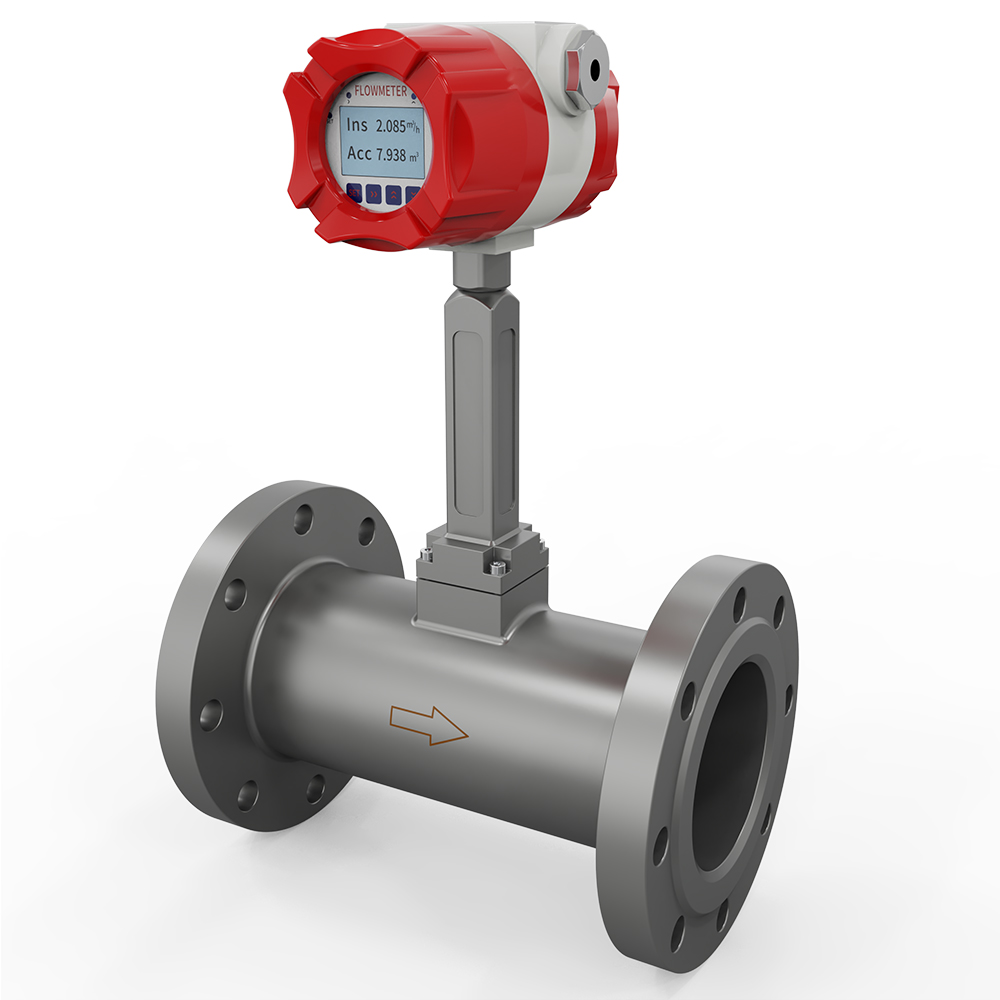

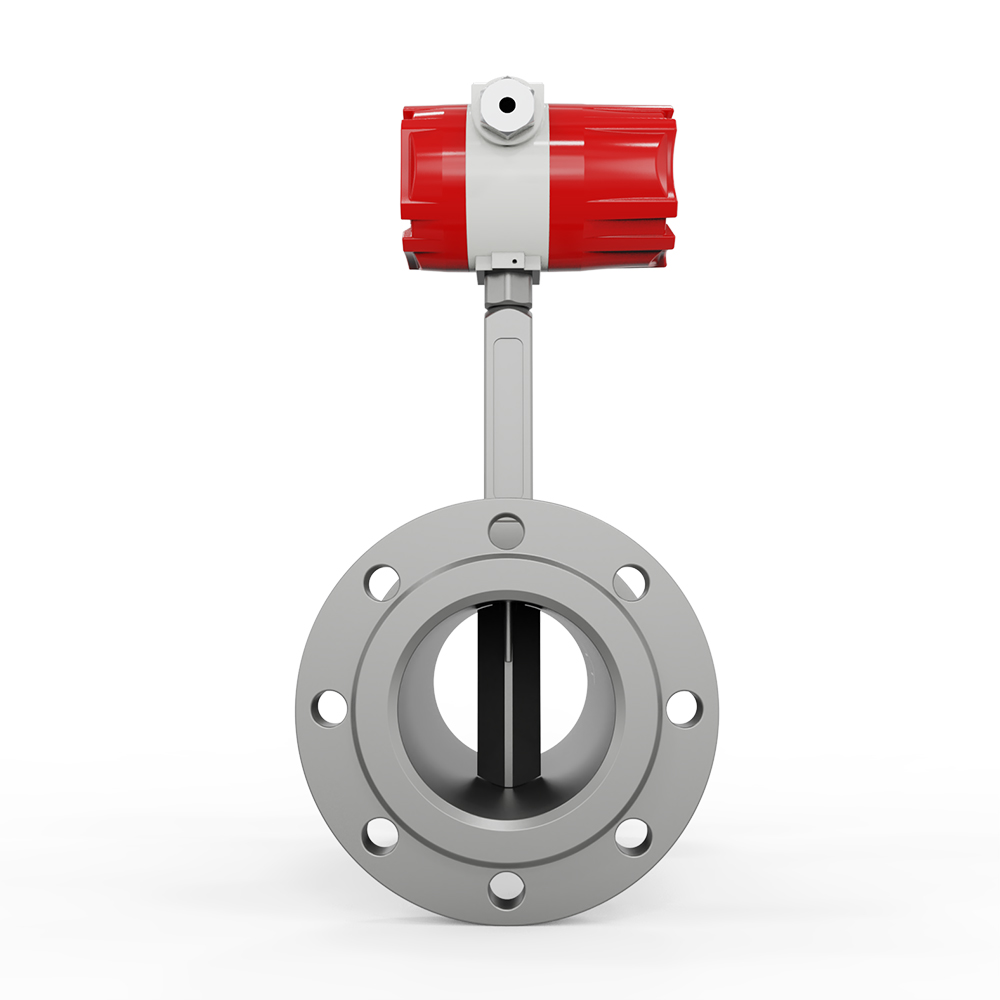

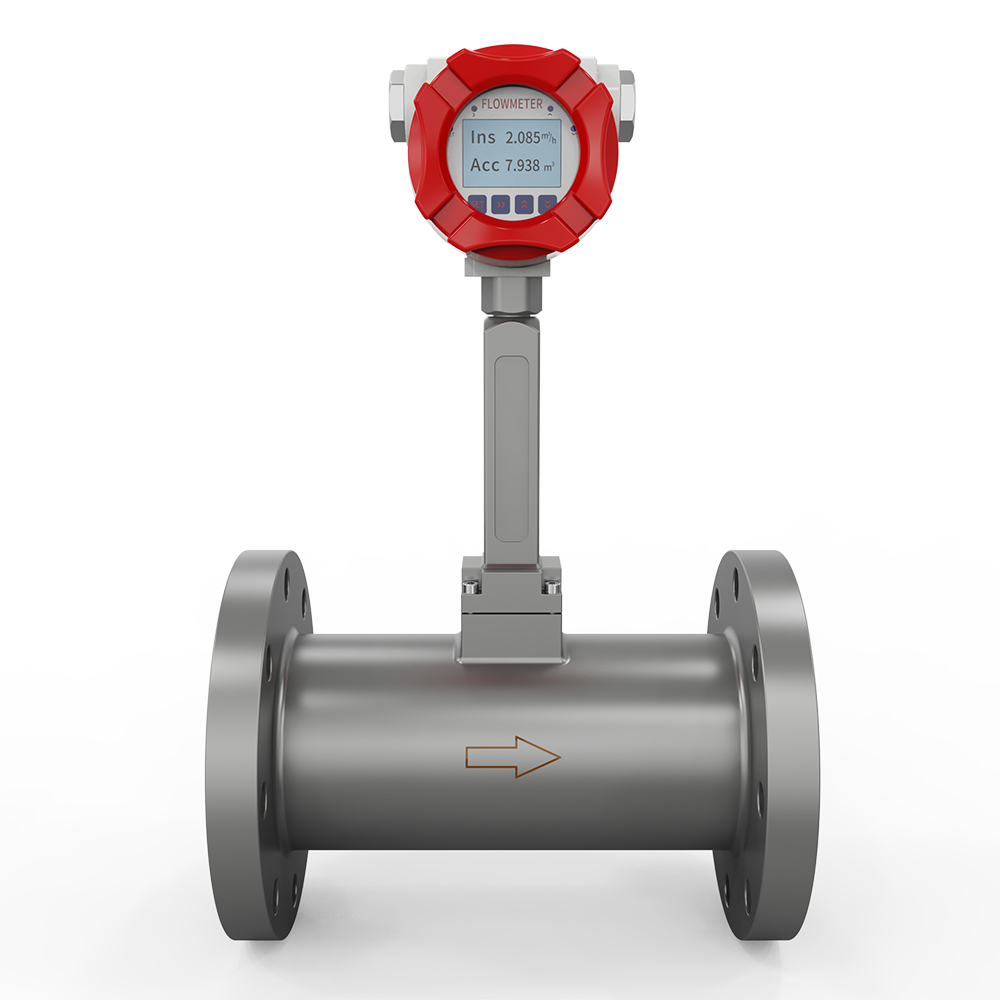

MIK-LUGB Vortex flowmeter without temperature & pressure compensation

MIK-LUGB Vortex flowmeter work on the principle of generated vortex and relation between vortex and flow by theory of Karman and Strouhal, which specialize in measurement of steam, gas and liquid of lower viscosity.

Characteristics

Pipe diameter: DN15-DN300

Accuracy: 1.0%  1.5%

Range Ratio:  1:8

Ingress protection: IP65



  • Measuring principle

    A fluid flowing with a certain velocity and passing a fixed obstruction generates vortices. The generation of vortices is known as Karman’s Vortices.The frequency of vortex shedding is a direct linear function of fluid velocity and frequency depends upon the shape and face width of bluff body.

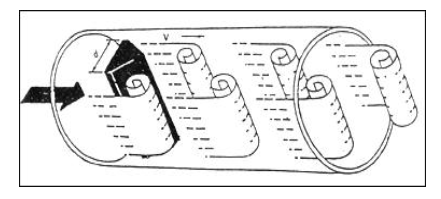

Kármán vortex street

Since the width of obstruction and inner diameter of the pipe will be more or less constant, the frequency is given by the expression:

f=StV/d

In the formula:
f – Karman vortex frequency generated at one side of bluff body (Hz)
St – strouhal number (non-dimensional number)
V – average speed of fluid (m/s)
d – width of bluff body (m)

  • Specification
 Product  Vortex flowmeter
 Model  MIK-LUGB
 Diameter nominal  DN15~DN300
 Installation  Wafer connection: DN15-DN300(priority PN2.5MPa);   Flange connection: DN15-DN50(priority PN2.5MPa);DN65-DN200(priority PN1.6MPa);DN250-DN300(priority PN1.0MPa)
 Accuracy  Gas without compensation: DN15-DN25--1.5%, DN32-DN200--1.0%, DN250-DN300--1.5%
 Range Ratio  Gas density:1.2kg/m3, Range ratio: 8:1
 Medium Temperature  -20°C ~ +150°C、-20°C ~ +260°C、-20°C ~ +300°C
 Output signal  4-20mA
 Frequency  RS485 communication (Modbus RTU)
 Power supply  24VDC±5%  Li battery(3.6VDC)
 Ingress protection  IP65
 Body Materials  Stainless shell
 Display  128*64 dot matrix LCD
  • Introduction

Introducing our state-of-the-art flow meter collection, designed to measure the flow rate of various mediums with precision and accuracy. SUP-LUGB  vortex flowmeters are widely used in the measurement of steam, compressed air, nitrogen and other gases.

The Vortex flowmeter is ideal for measuring liquids, gases, and steam with high accuracy, thanks to its unique design that utilizes vortex shedding to measure flow rate. It can be used in a variety of industries, including oil and gas, chemical, and water treatment.

The vortex flowmeter for steam is specifically designed to measure the flow rate of moisture, making it an essential tool for industries that rely on steam as a heating or power source. Its high-temperature resistance and durable construction make it a reliable choice for steam flow measurement.

The vortex flowmeter for air is perfect for measuring the flow rate of air in HVAC systems, as well as in industrial processes where airflow is critical. Its compact size and easy installation make it a popular choice for indoor and outdoor applications.

The vortex flow meter for gas measures the flow rate of natural gas, compressed air, and other gases. Its high-precision measurement and rugged construction make it suitable for use in harsh environments.

Supmea Vortex steam flowmeter combines the features of the Vortex and Steam flowmeters, making it an ideal solution for measuring the flow rate of steam in various industries. Its advanced design ensures accurate measurement even under extreme conditions, and its easy installation and maintenance make it a cost-effective choice for steam flow measurement.

Choose from our range of vortex flow meters to find the perfect solution for your specific needs.

  • Description

 vortex flowmeter

  • Application

steam flowmeter

air flowmeter
