MIK-LDG Remote type electromagnetic flowmeter

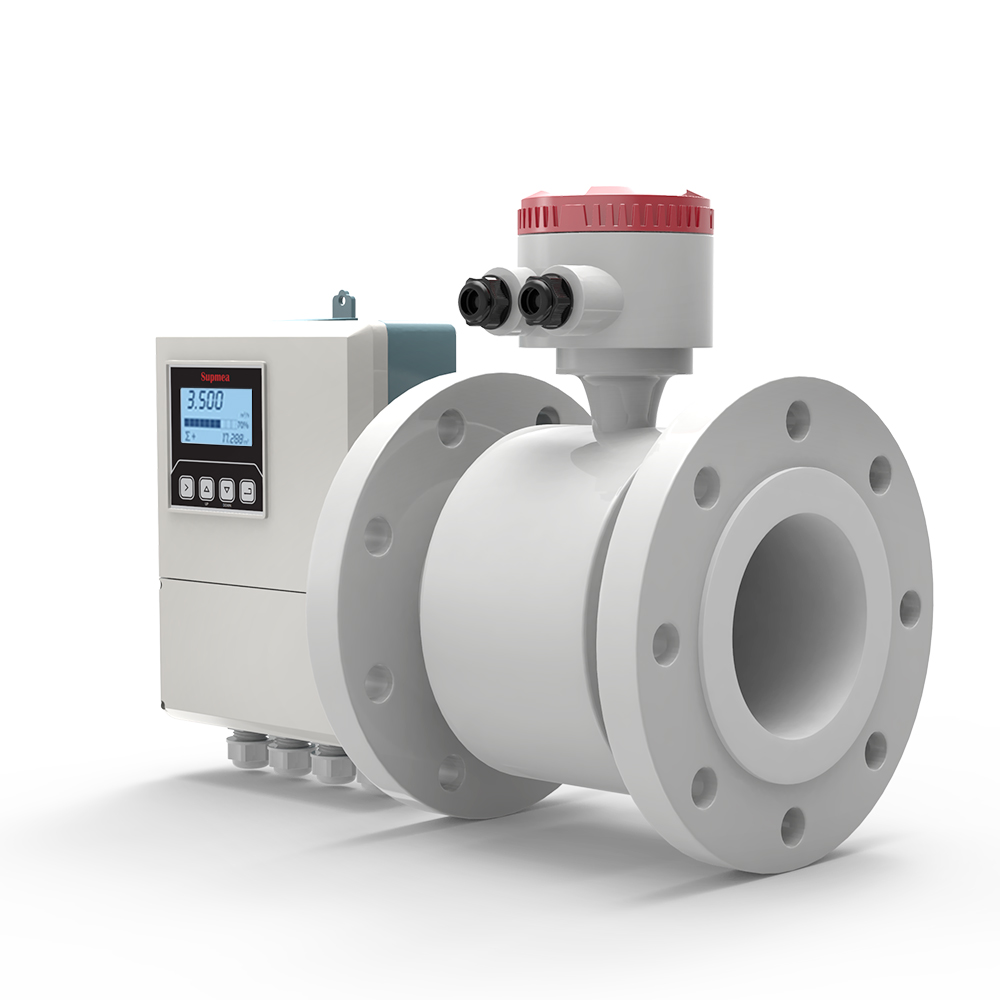

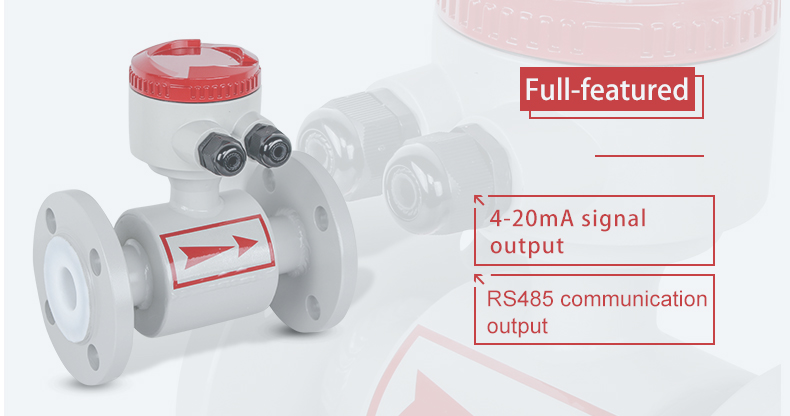

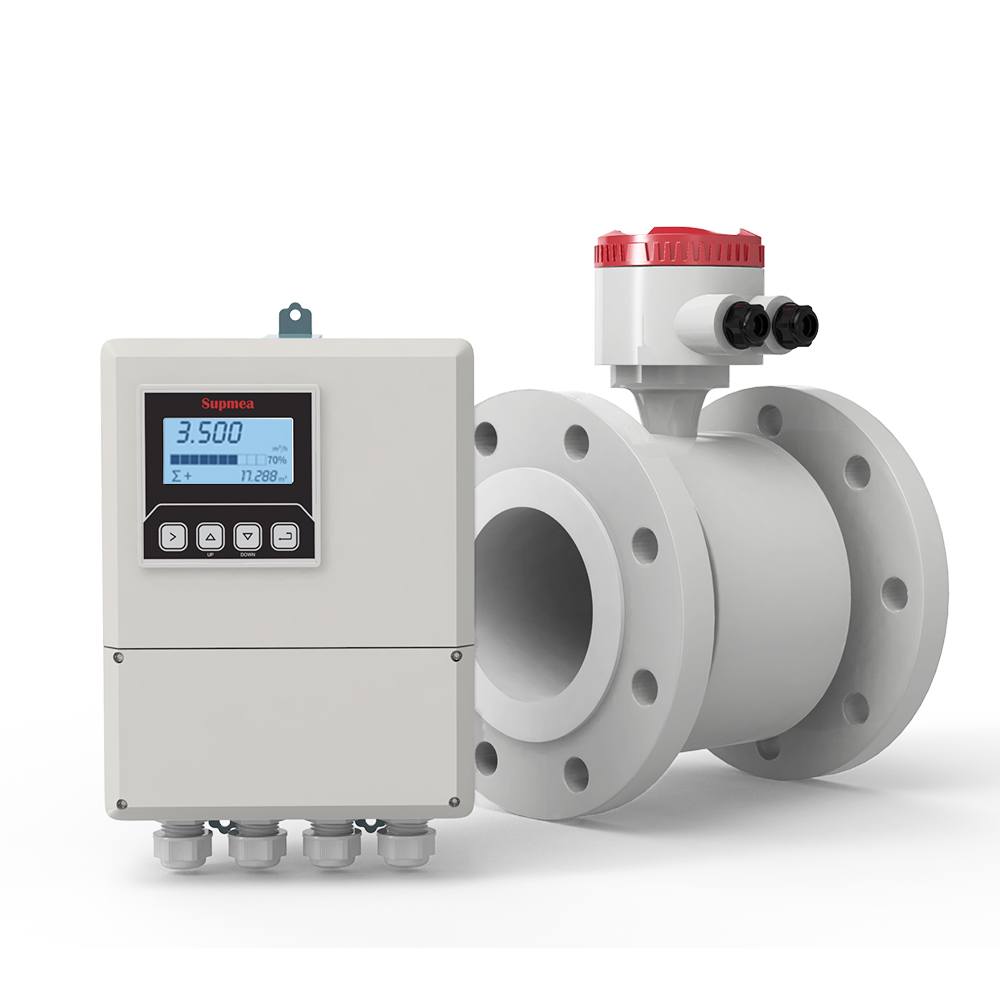

Electromagnetic flowmeter is only applicable to measure the flow of conductive liquid, which is wide used in water supply, sewage water measuring, industry chemical measuring etc. The remote type is with high IP protection class and can be installed in different locations for the transmitter and converter. Output signal can pulse,4-20mA or with RS485 communication.

Characteristics

Accuracy: ±0.5% (Flow speed > 1m/s)

Reliably: 0.15%

Theoretical value: Water: Min. 20μS/cm; Other liquid: Min. 5μS/cm
Recommended value: >30μS/cm

Flange: ANSI/JIS/DIN DN15… 1000

Ingress protection: IP68



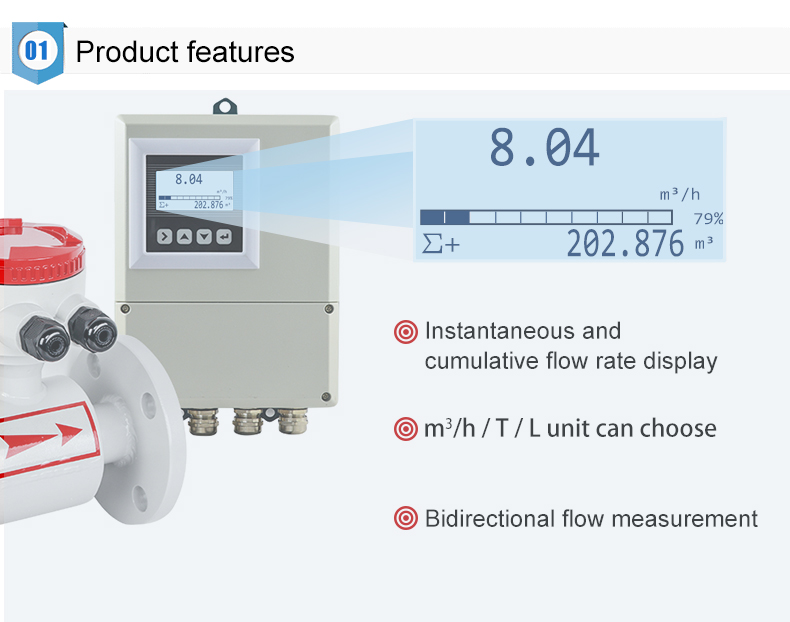

  • Introduction

The MIK-LDG remote water flow meter is a device used to measure the flow rate of water in a pipeline or other water system. This type of meter is designed to be installed at a distance from the point of measurement, allowing for remote monitoring of water usage and flow rates.

Remote water flow meters are commonly used in industrial and commercial applications, where accurate measurement of water usage is important for billing and other purposes. They can also be used in residential settings to monitor water usage and identify leaks or other issues.

One of the key benefits of a remote water flow meter is that it allows for real-time monitoring of water usage. This can help to identify leaks or other issues early on, allowing for prompt repairs and reducing the risk of water damage or other problems.

Another advantage of remote water flow meters is that they can be integrated with other systems, such as building automation systems or water management software. This allows for more efficient management of water usage, as well as improved tracking and reporting of water consumption.

When selecting a remote water flow meter, it is important to consider factors such as accuracy, reliability, and ease of installation. It is also important to choose a meter that is compatible with the specific type of water system being monitored.



  • Specification

 Product  Electromagnetic flowmeter
 Model MIK-LDG
 Diameter nominal  DN15~DN1200
 Nominal pressure DN15 - DN250, PN ≤1.6MPa; DN300 - DN1000, PN ≤1.0MPa; DN1200, PN ≤0.6 MPa; Higher pressure can be customized
 Accuracy  ±0.5% F.S. (Flow speed > 1m/s);  ±0.5% F. S. ±2mm/s (Flow speed <1m/s)

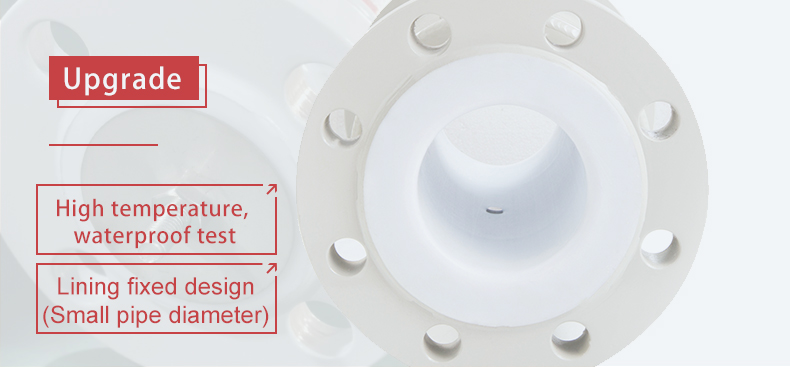

 Liner material   Neoprene (CR), Polyurethane (PU), PTFE (F4), PFEP (F46), PFA
 Electrode material   316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt
 Medium temperature Neoprene: -10…+60 Polyurethane: -10…+60℃ PTFE/FEP: -10…+120℃ PFA: -10…+180℃
 Power supply 85-245VAC,50/60Hz, 22VDC-26VDC
 Electrical conductivity  Water min.20μS/cm;other medium min.5μS/cm
 Structure type  Compact type, Remote type
 Ingress protection IP65 for converter, IP68 for sensor
 Product standard  JB/T 9248-1999 Electromagnetic Flow Meter

  • Measuring principle

Mag meter works based on Faraday's law, and measure conductive medium with conductivity more than 5 μs/cm and flow range from 0.2 to 15 m/s. An Electromagnetic Flowmeter is a volumetric Flowmeter that measures the flow velocity of a liquid through a pipe.

The measurement principle of magnetic flow meters can be described as follows: when the liquid goes through the pipe at the flow rate of v with a diameter D, within which a magnetic flux density of B is created by an exciting coil, the following electromotive E is generated in proportion to flow speed v:

E=K×B×V×D

              Where:
              E-Induced electromotive force
              K-Meter constant
              B-Magnetic induction density
              V-Average flow speed in cross-section of measuring tube
              D-Inner diameter of measuring tube

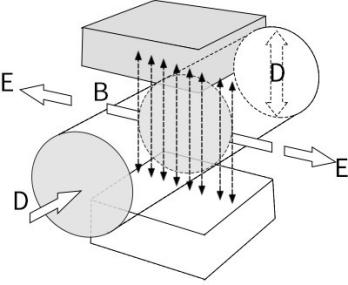

mag meter Measuring principle

  • Introduction

remote water flow meter

Noted: the product strictly prohibited to be used in explosion-proof occasions.


  • Application

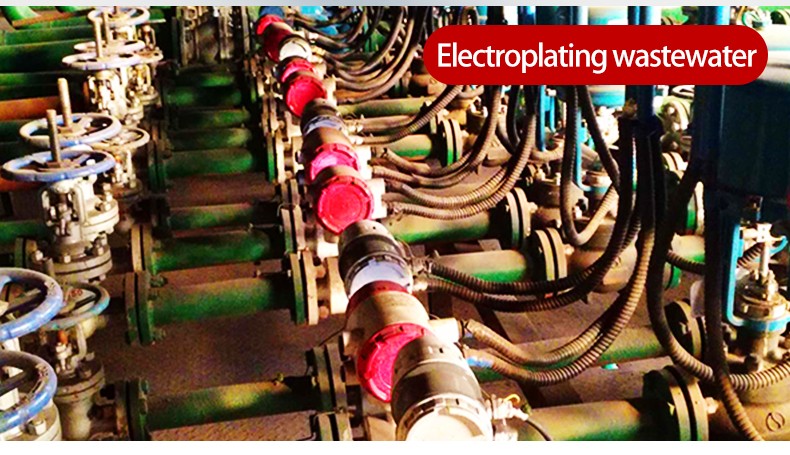

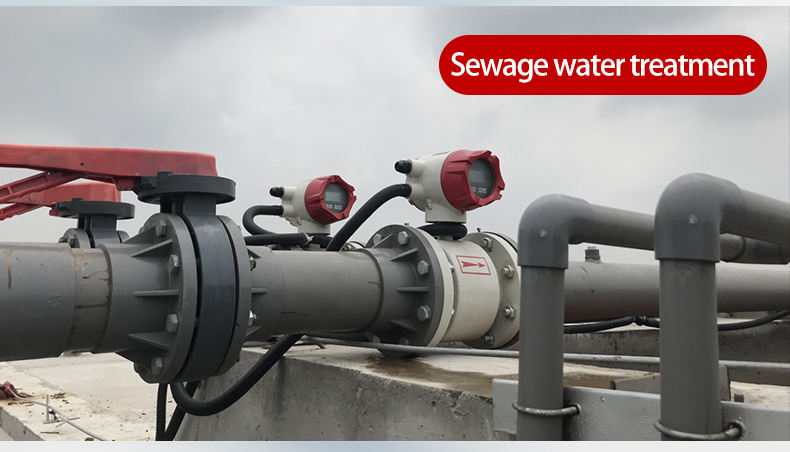

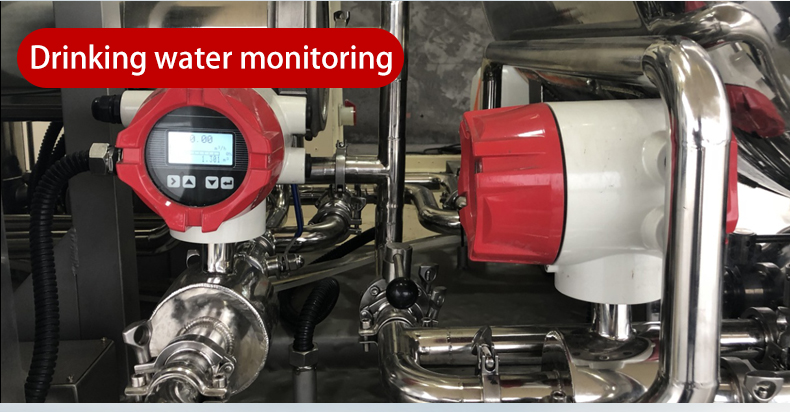

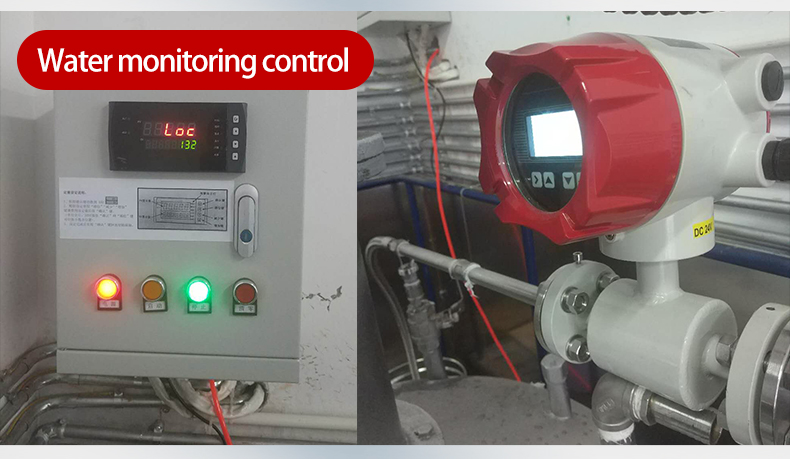

Electromagnetic flowmeters have been used throughout industries for more than 60 years. These meters are applicable for all conductive liquids, such as: Domestic water, industrial water, raw water, ground water, urban sewage, industrial wastewater, the processed neutral pulp, pulp slurry, etc.

Split flow meter


  • Description

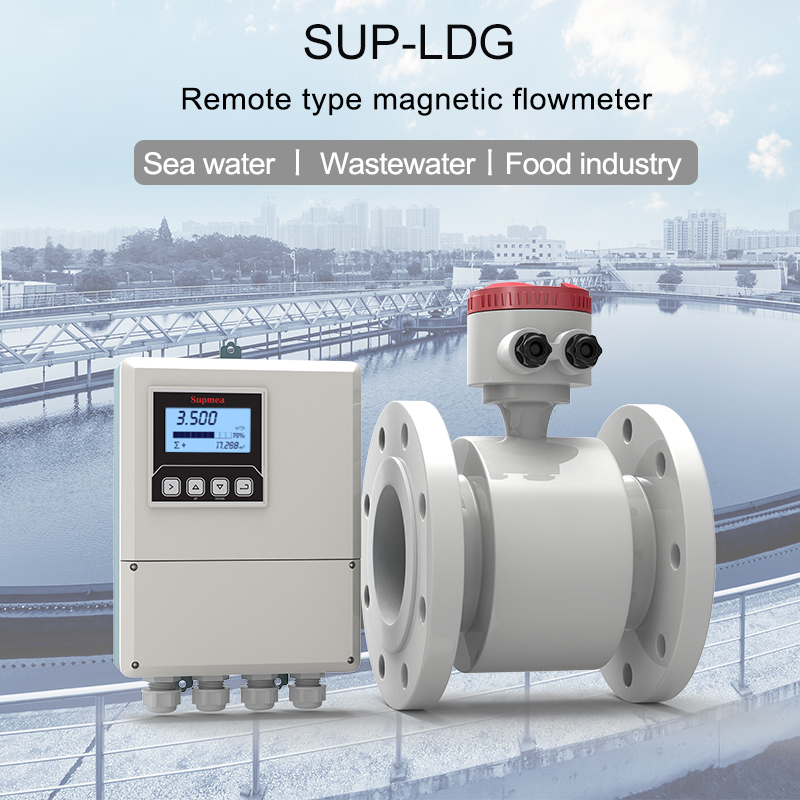

SUP-LDG Remote type electromagnetic flowmeter supplier
